SPECIFICATIONS

8858: Hot air welding station

Air Volume: 2800rpm

Brand Name: JCD

Certification: CE

Delivery Time: 3-7 Working Days Local Delivery

Electrified: No

Feature: Cool / Hot Air,Temperature Adjustable,Temperature Digital Display

High-concerned chemical: none

JCD Model: 8858

Model Number: 8858

No-Load Speed: 2800rpm

Power Source: Ac

Rated Output Power: 650W-750W

Rated Voltage: 220V

Shipping Location: Brazil Warehouse

Use: Home DIY

Weight: 0.8KG

is_customized: Yes

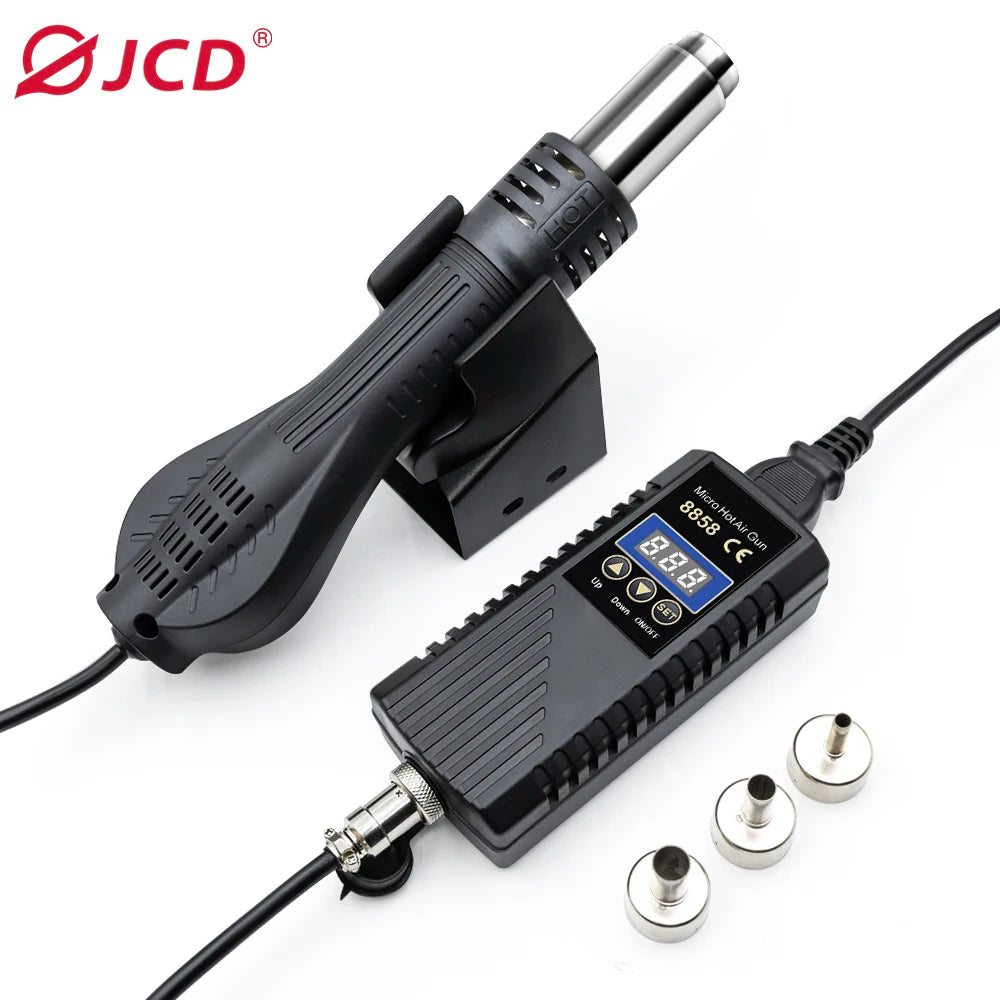

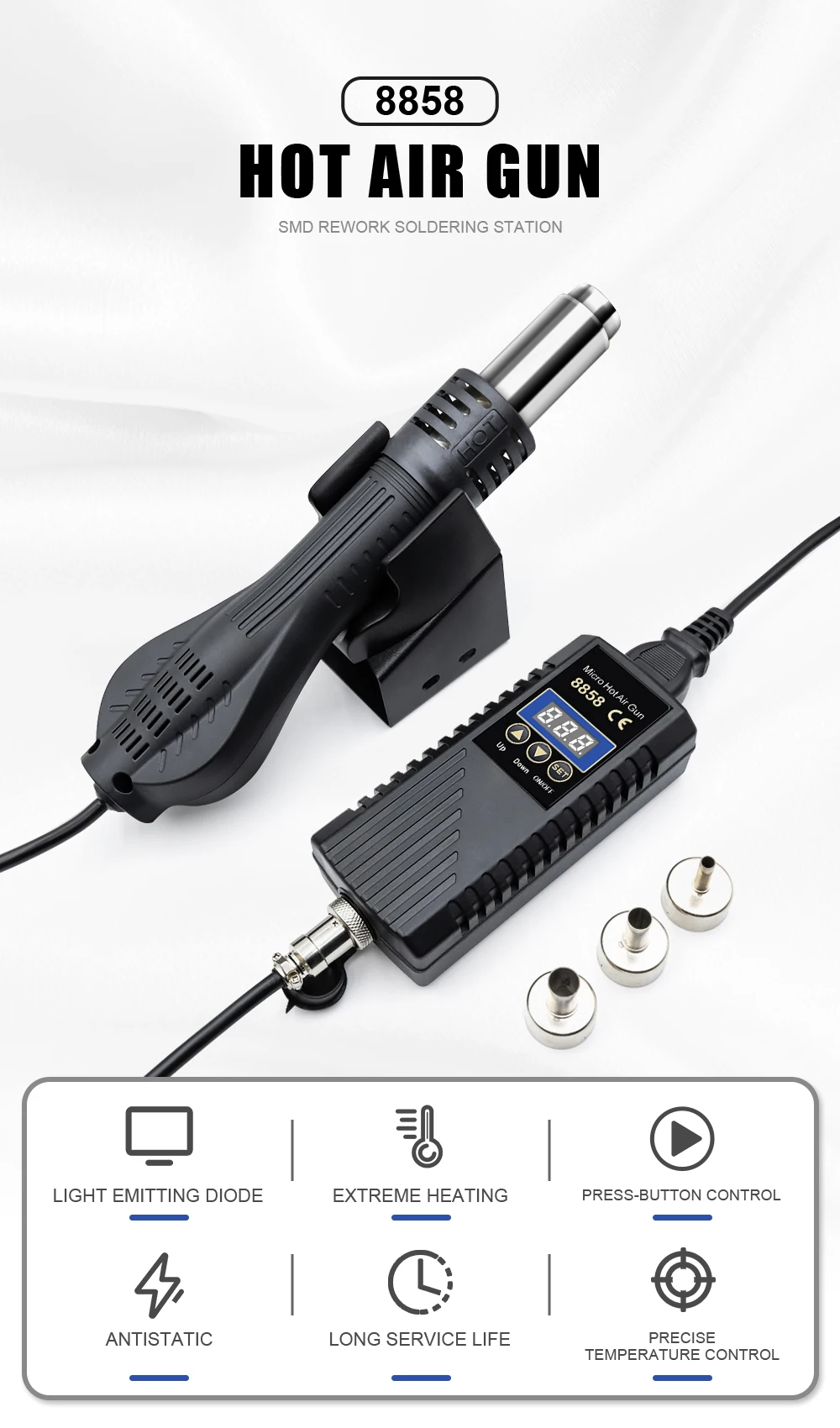

8858 Hot Air Gun

【specification】

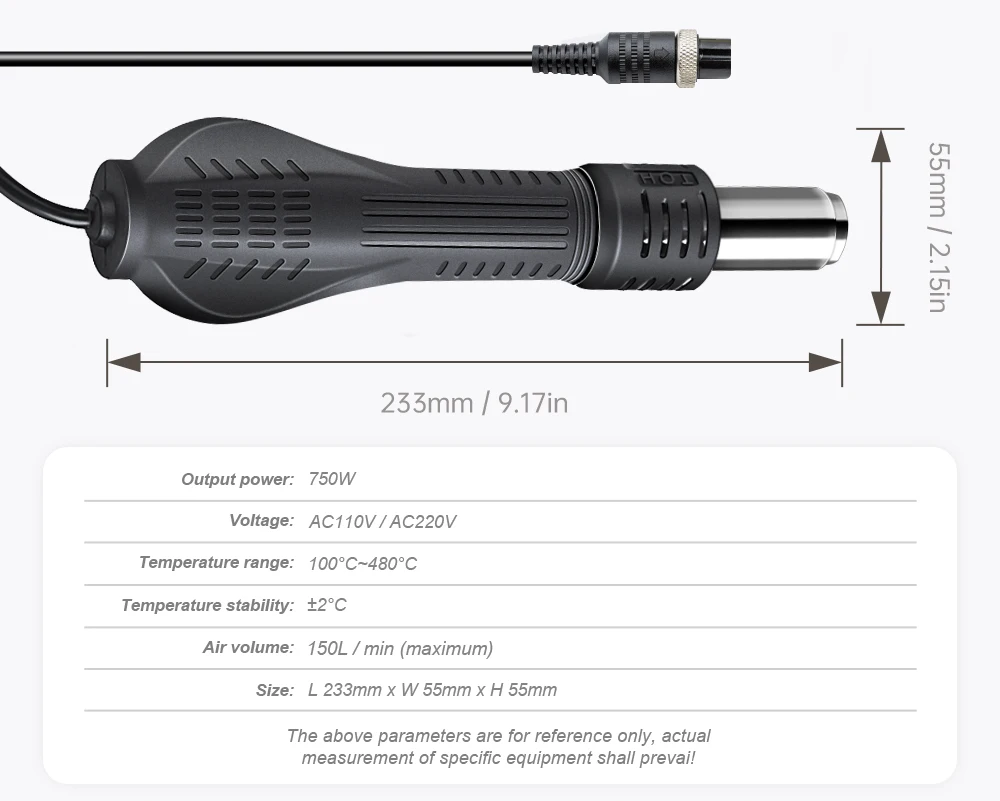

Hot air gun

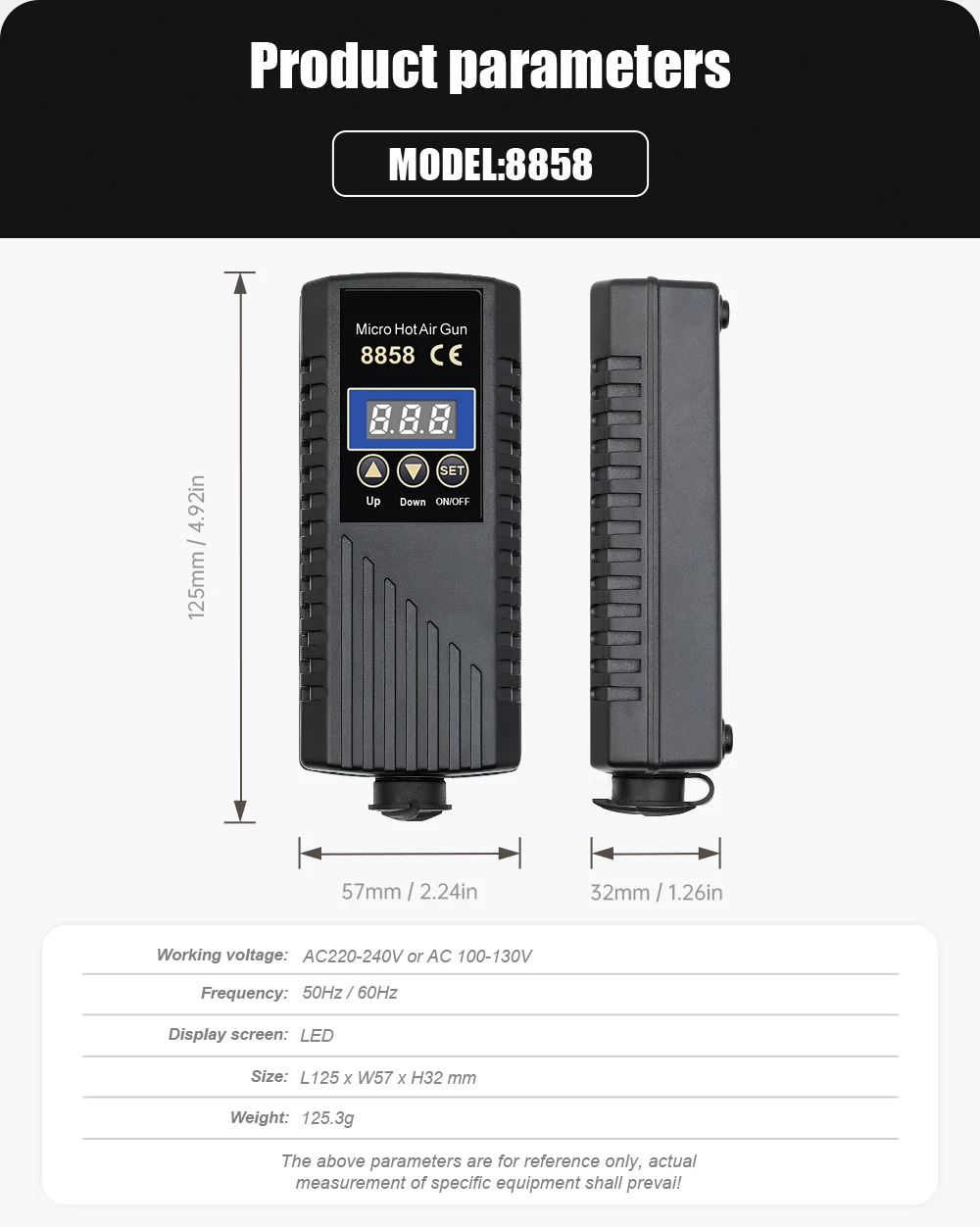

Voltage: AC220-240V / AC100-130V

Frequency: 50Hz / 60Hz

Output power: 750W

Temperature range: 100 ° C to 480 ° C

Temperature stability: ± 2 ° C

Air flow: 150 liters per minute (maximum)

【Product Description】

1. Portable handheld digital LED display

2. Adjust the keyboard to control the air flow and temperature

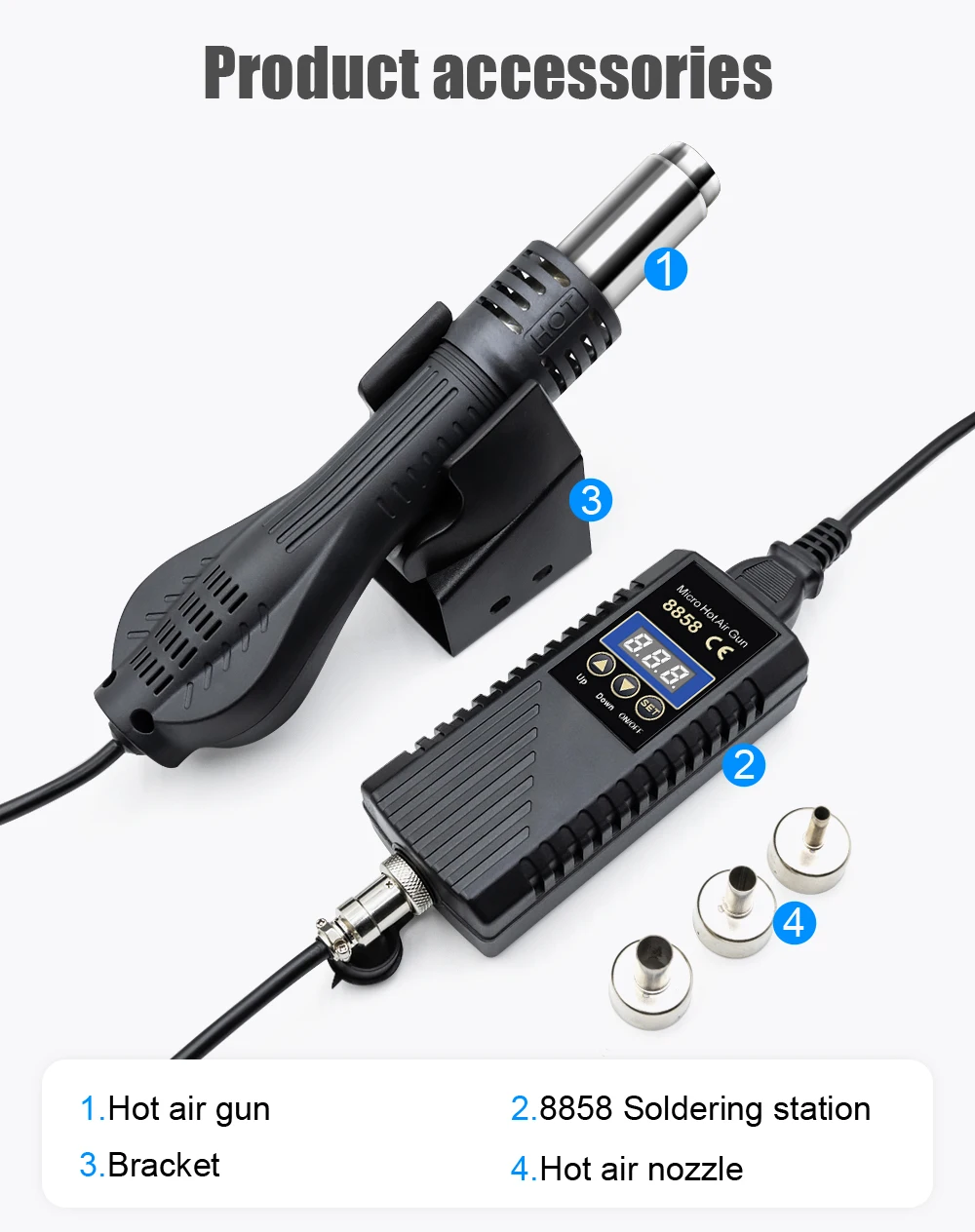

3. For nozzle replacement, refer to the instructions for the three types of nozzles (large, medium, and small) that come with the product.

4. If the temperature is below 70 ℃, the rotation can be stopped automatically.

5. High quality strength and long service life

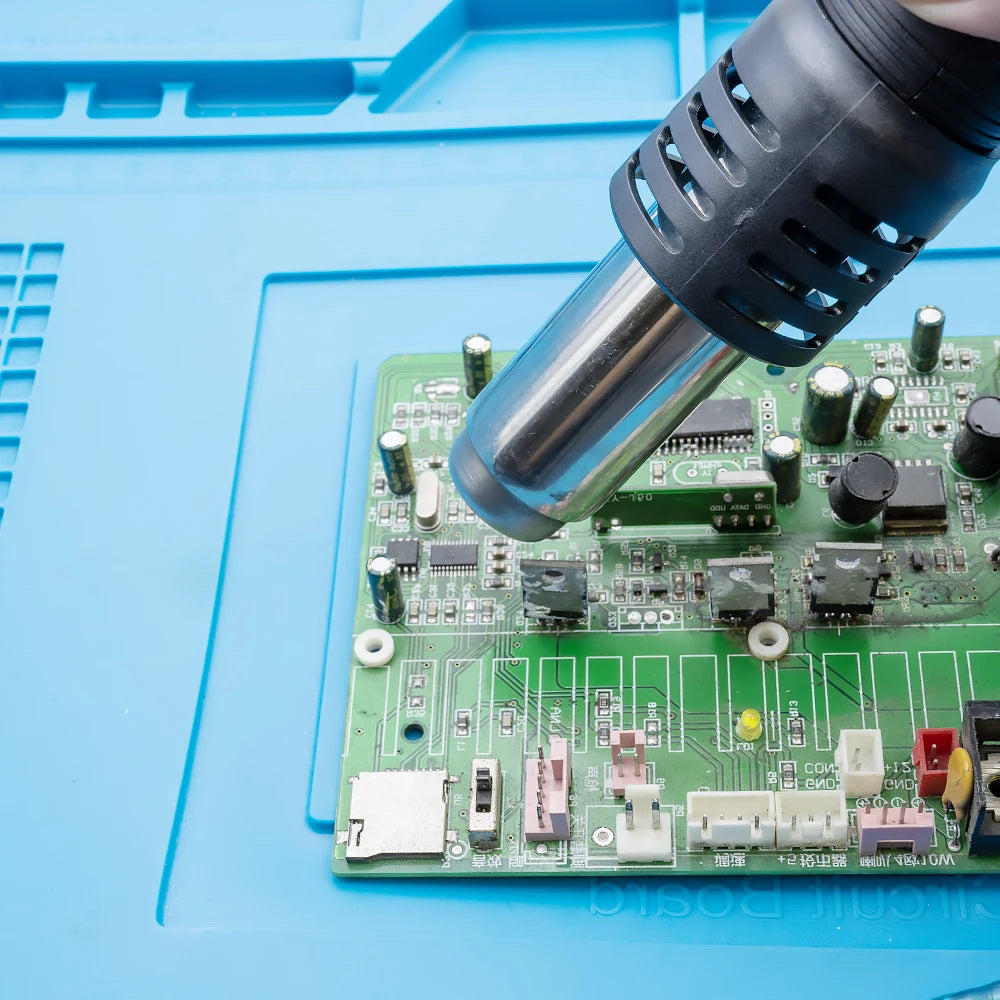

6. Safe welding of QFP, PLCC, BGA and other temperature sensitive components

7. Intelligent guidance and cold air flow function

8. The green line, high quality silicon body and excellent heat dissipation extend the service life and save energy.

9. Portable and digital LED Bga reworkstation with brushless fan, 100W ~ 650W technical data.

Product description

Portable handheld digital LED display

Adjust the keyboard to control the flow and temperature of the air

If the temperature is below 70 degrees Celsius, you can stop the rotation automatically

High quality strength and long service life

Safe welding of QFP, PLCC, BGA and other temperature sensitive components

Intelligent induction and cold flow function

Green line and high quality silicon body, excellent heat dissipation helps you extend the service life and save energy.

Portable and digital ledga reworkstation with brushless fan, 100w-650 w technical data.

Order

Hot air gun

Turn on the power and adjust the temperature knob. If the temperature does not reach a predetermined value, the indicator light will turn on. Wait for a while, when the temperature reaches a certain value, the indicator light goes off.

Adjust the temperature and air flow of the hot air gun according to the shape and working conditions of the nozzle.

Do not put too much force when attaching nozzle. In addition, to prevent damage to the electric wire or high temperature glass, please do not strongly strike the work table with welding iron.

Please be careful of high temperature operation. Please do not use the hot air gun near the flammable gas or the object. Pay attention to personal safety. Replace or leave the component. Don't forget to turn the power off and cooling. If you do not use this product for a long time, please remove the power plug.

Soldering:

In the welding process, the temperature of the soldering station can be adjusted. When the solder is hard to dissolve, the temperature can be raised appropriately.

Rosin is flux and can improve welding quality and efficiency.

In the welding process, first, the soldering pen is coated with tin, and the soldering point is heated using the soldering pen, and the welding wire is placed at the soldering point.

When the welding is complete, the tin is coated on the soldering pen for protection.
