FNIRSI DSO510 New 10MHz Handheld Digital Oscilloscope 2 in 1 Signal Generator 48MS/s Sampling Rate Electronics Reparie Tools
FNIRSI DSO510 New 10MHz Handheld Digital Oscilloscope 2 in 1 Signal Generator 48MS/s Sampling Rate Electronics Reparie Tools
Couldn't load pickup availability
SPECIFICATIONS
Amplitude: 0.1-3.0V
Battery Included: Yes
Brand Name: FNIRSI
Certification: CE
Coupling method: AC/DC
DIY Supplies: Electrical
Display: 2.8 inches/PPI:320*240
Display Type: Digital Only
Duty cycle: 0-100%
Frequency: 0-50KHz
High-concerned chemical: None
Lithium battery capacity: 1000mAh
Model Number: DSO510
Origin: Mainland China
Power Supply: Battery
Size: 99x68.3x19.5mm
Time base range: 50ns-20S
Trigger method: Auto/Normal/Single
USB charging: 5V/1A
Vertical sensitivity: 10mV/Div-10V/Div
Voltage range: Other,X1:40V (Vpp:80V)
Waveforms: 13 kinds
Weight: 104g

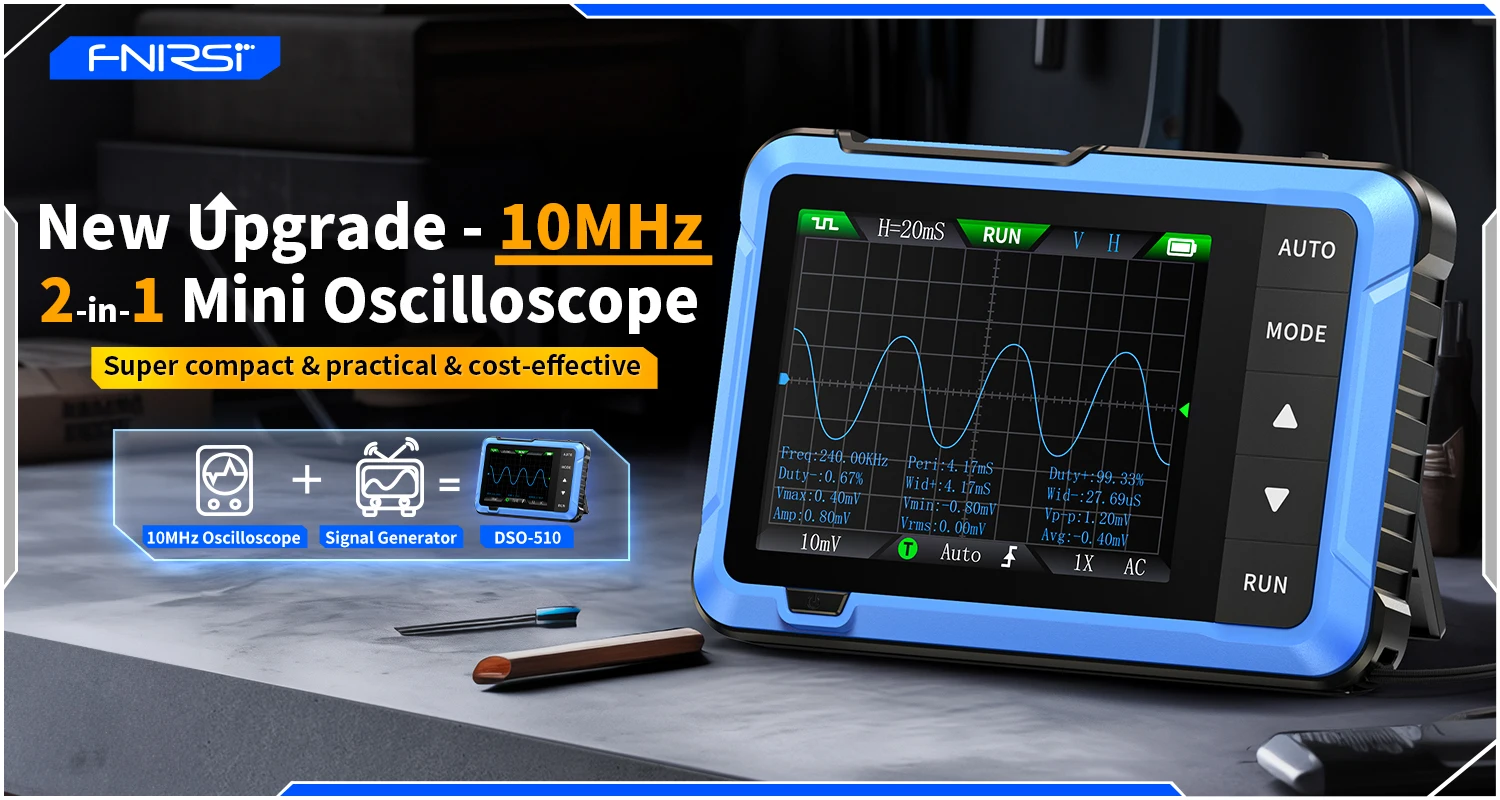

DSO-510 is a highly practical and cost-effective handheld oscilloscope launched by our company, targeting the maintenance industry and development education industry.
This oscilloscope has a real-time sampling rate of 48MS/s, 10MHz bandwidth, and complete triggering function (single, normal, auto).

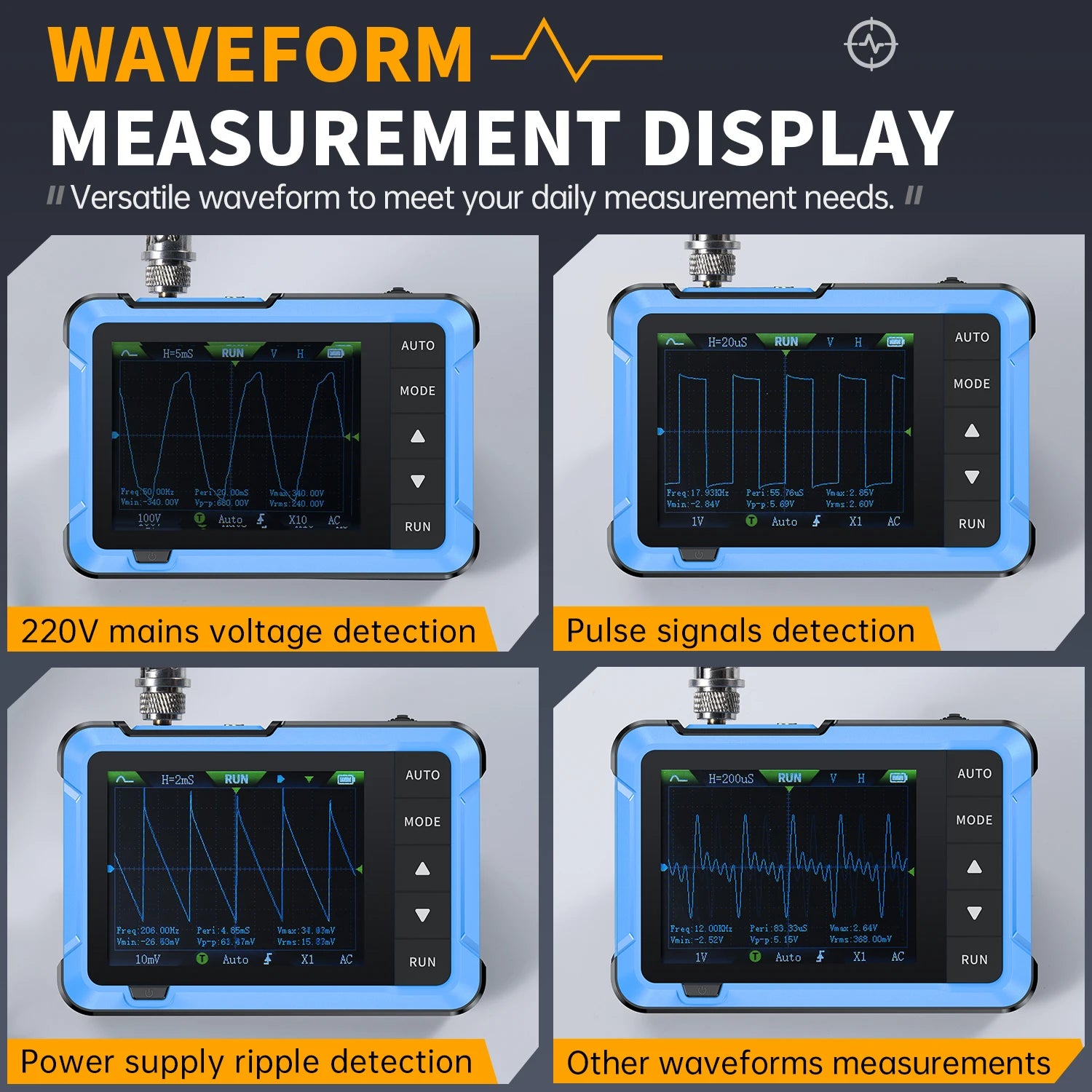

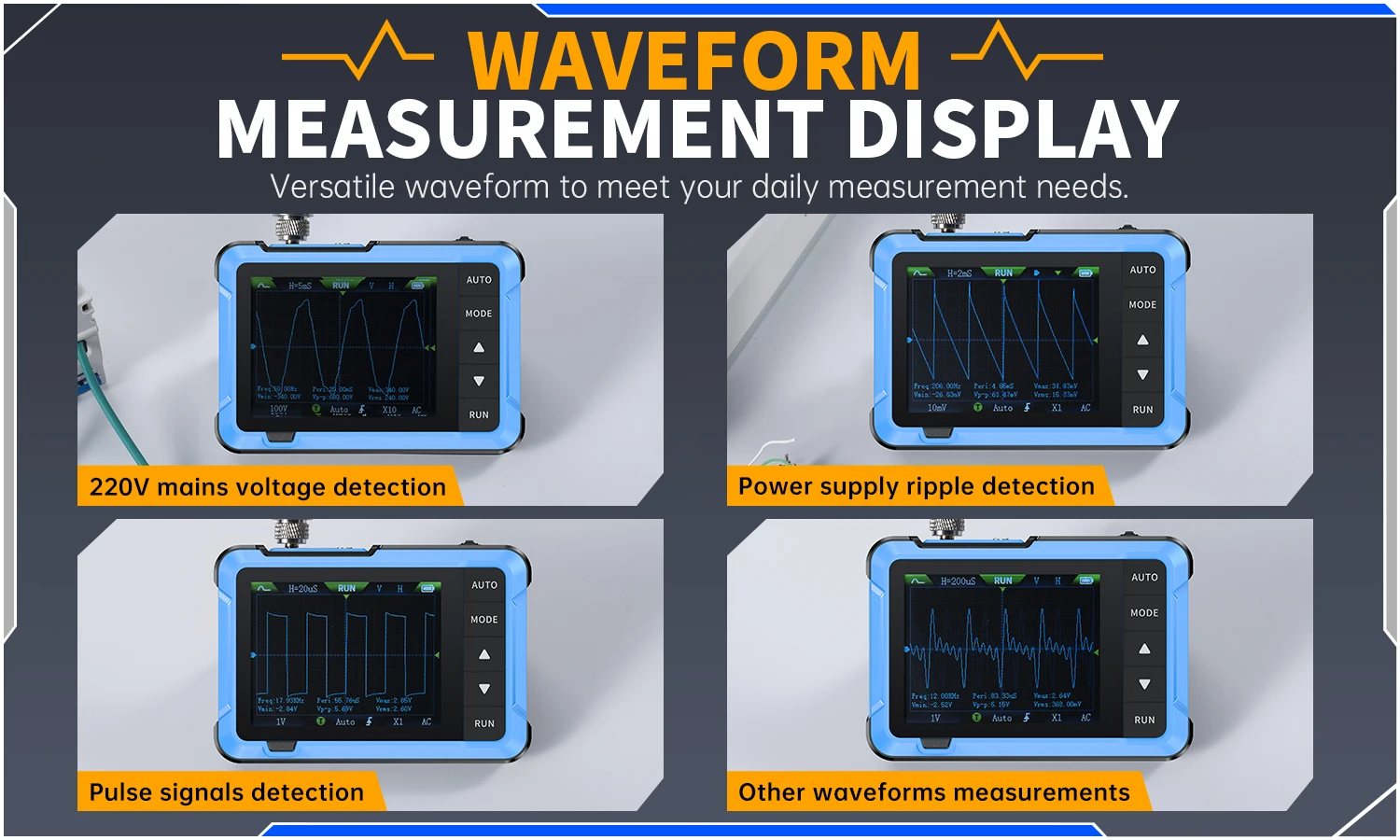

It can be used freely for both periodic analog signals and non periodic digital signals, and can measure up to ± 400V voltage with an efficient one click AUTO, which can display the measured waveform without complicated adjustments.
In addition, it also comes with multiple functions signal generator (50KHz).

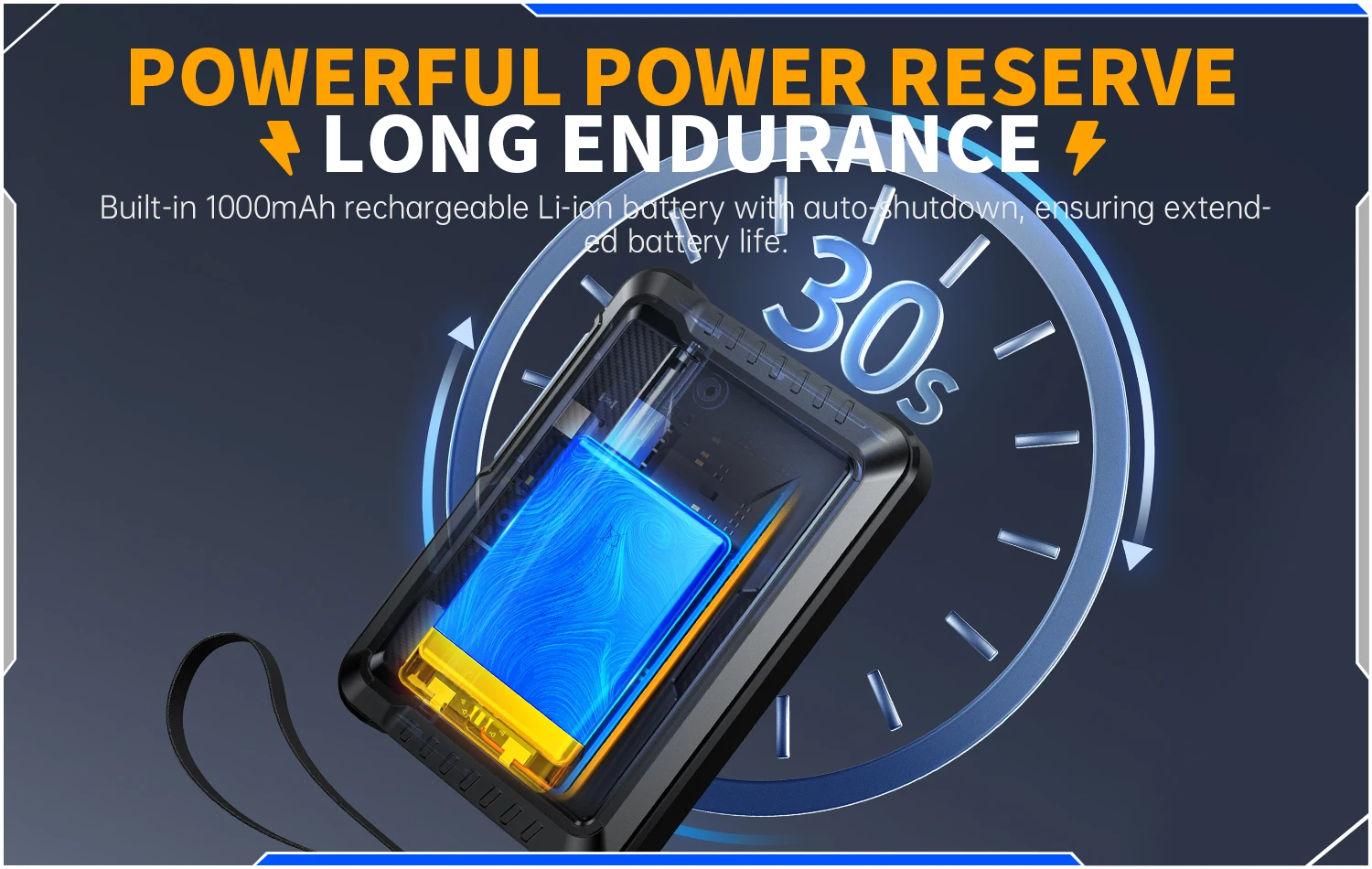

Equipped with a 2.8-inch 320 * 240 resolution HD LCD screen and a built-in 1000mAh high-quality lithium battery, it can be used for about 4 hours when fully charged.
DSO510 2 IN 1 —— 10MHz Bandwidth
* Mini Oscilloscope *
Channel：1
Sampling rate：48MSa/s
Vertical sensitivity：10mV/Div-20V/Div（Progress according to the 1-2-5 way）
Time base range：50ns/Div-20s/Div（Progress according to the 1-2-5 way）
Voltage range：X1:士40V (Vpp:80V) X10: 士400V (Vpp :800V)
Trigger method：Auto / Normal / Single
Coupling method：AC/DC

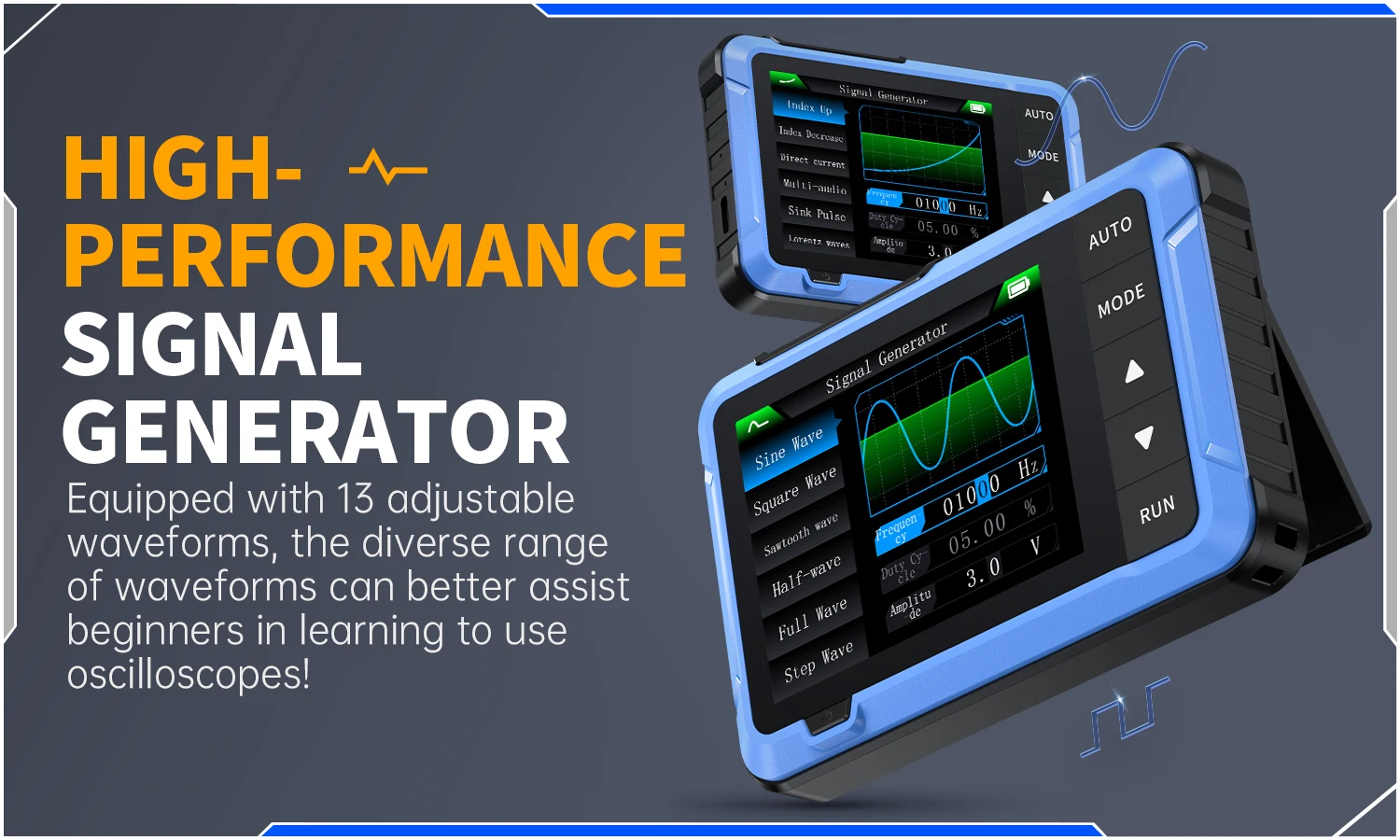

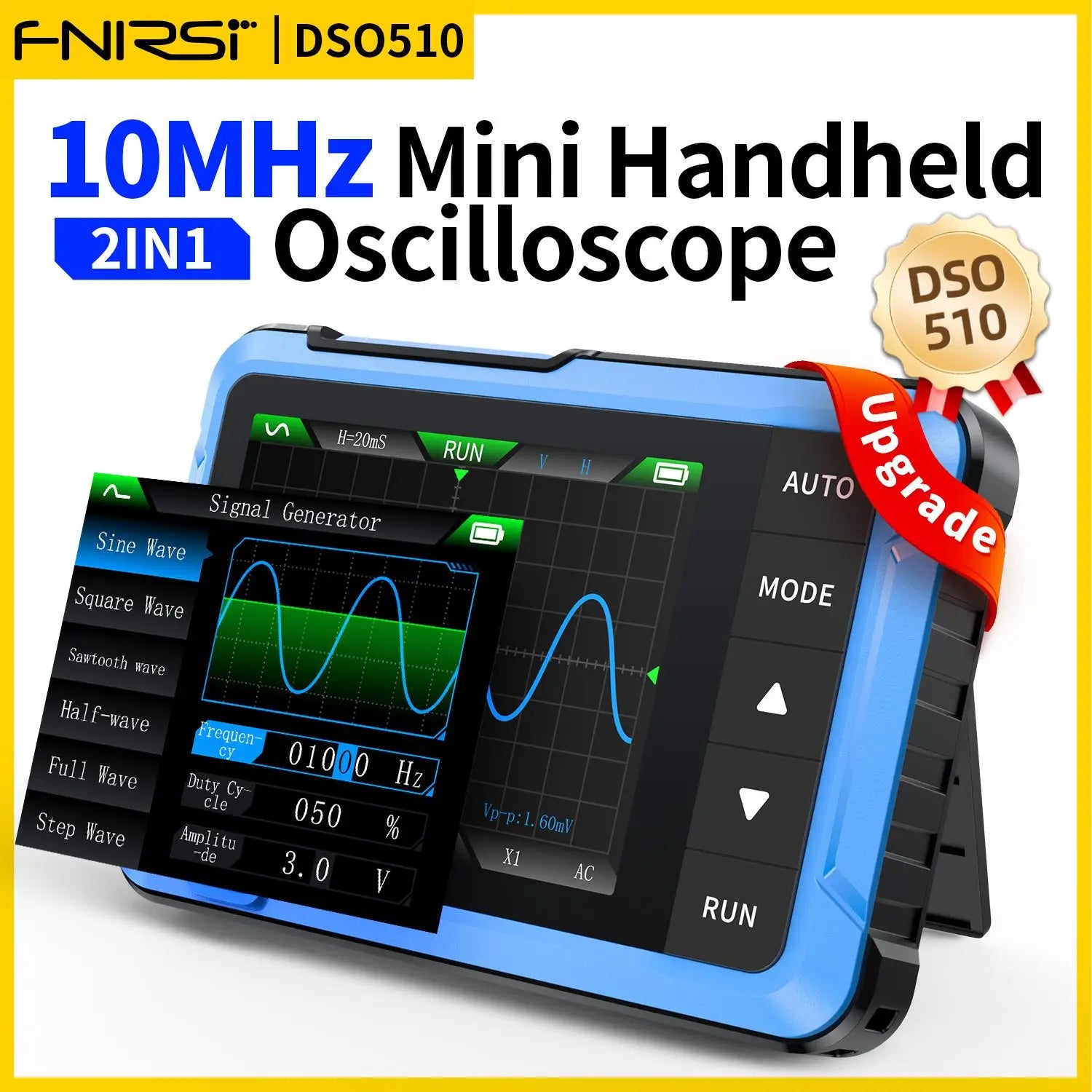

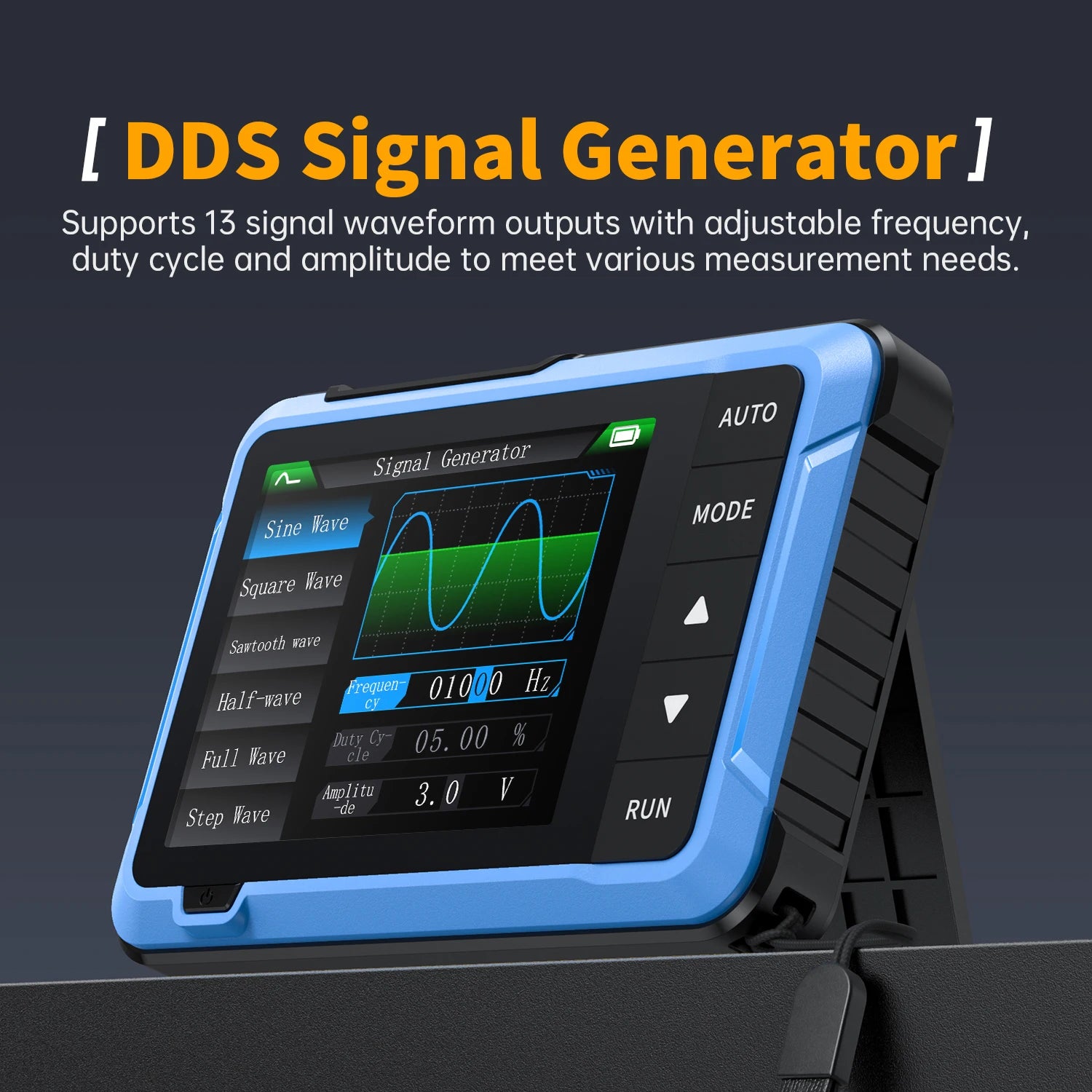

* Signal generator *
Frequency：0-50KHz
Duty cycle：0-100% (rectangular and sawtooth waves)
Amplitude：0.1-3.0V
Waveforms：Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, exponential rise, exponential drop, DC signal,
multi tone, Sink pulse, Lorentz wave.
* Other Parameters *
Display：2.8 inches/PPI:320*240
USB charging：5V/1A
Lithium battery capacity：1000mAh
Size：99x68.3x19.5mm
Weight：104g

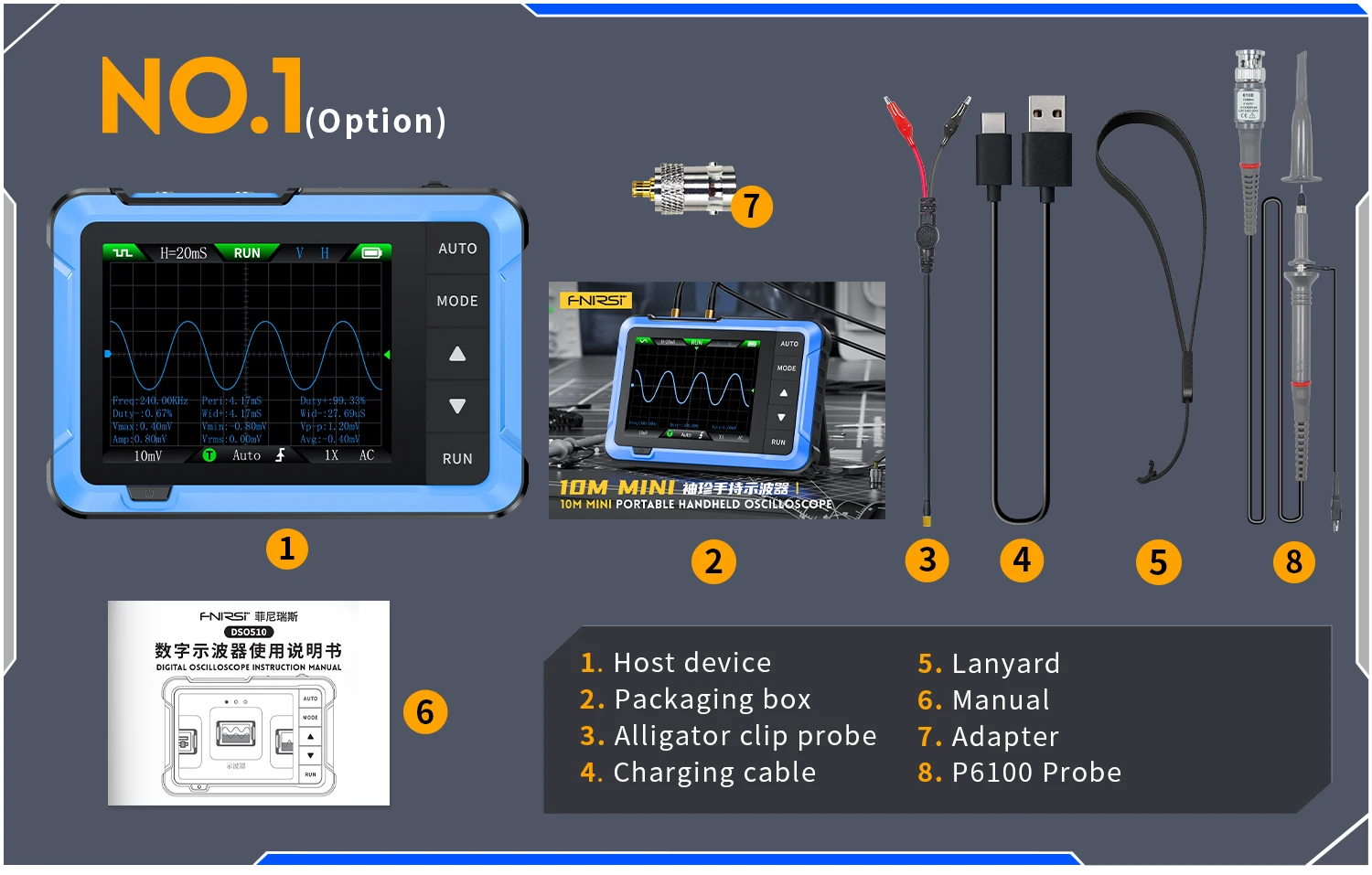

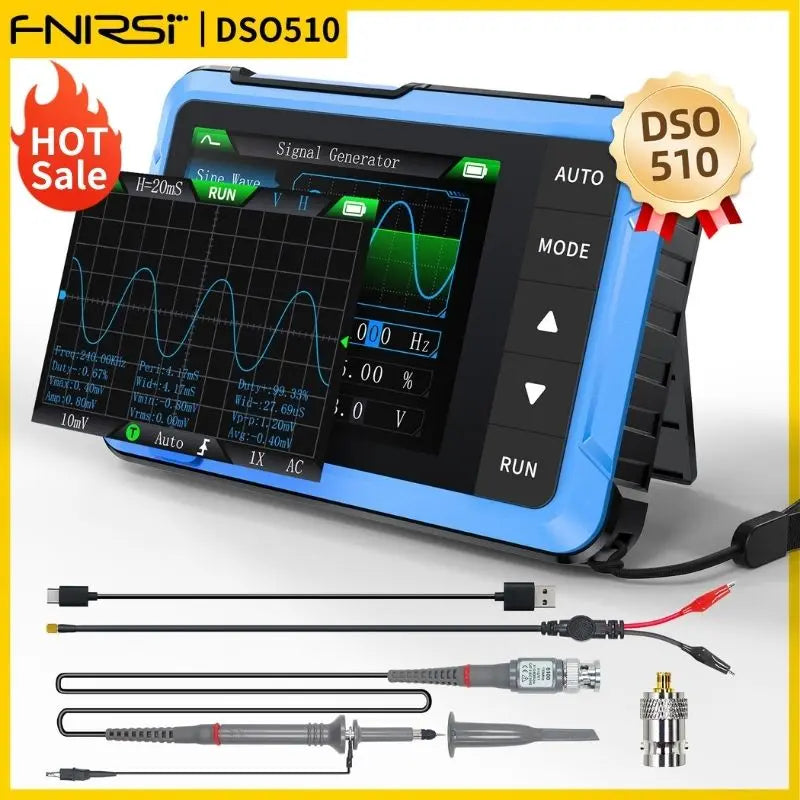

NO.1 (Option)
DSO510 Host device *1
P6100 High Voltage Probe *1
Adapter *1
Alligator clip probe *1
Charging cable *1
Lanyard *1
User Manual *1
Packaging color box *1
